Estes GBU-24 Paveway III Freefor Freeform Fin Set| Manufacturer: | Estes | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |

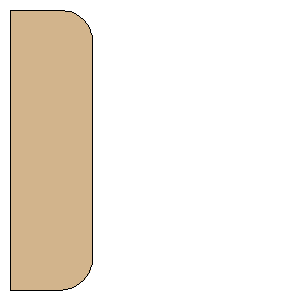

Download as PDF | Point 1: | (0.0000 mm, 69.8500 mm) | | Point 2: | (12.6365 mm, 69.8500 mm) | | Point 3: | (13.8782 mm, 69.7523 mm) | | Point 4: | (15.0893 mm, 69.4615 mm) | | Point 5: | (16.2400 mm, 68.9849 mm) | | Point 6: | (17.3020 mm, 68.3341 mm) | | Point 7: | (18.2492 mm, 67.5252 mm) | | Point 8: | (19.0581 mm, 66.5780 mm) | | Point 9: | (19.7089 mm, 65.5161 mm) | | Point 10: | (20.1855 mm, 64.3653 mm) | | Point 11: | (20.4763 mm, 63.1542 mm) | | Point 12: | (20.5740 mm, 61.9125 mm) | | Point 13: | (20.5740 mm, 7.9375 mm) | | Point 14: | (20.4763 mm, 6.6958 mm) | | Point 15: | (20.1855 mm, 5.4847 mm) | | Point 16: | (19.7089 mm, 4.3340 mm) | | Point 17: | (19.0581 mm, 3.2720 mm) | | Point 18: | (18.2492 mm, 2.3248 mm) | | Point 19: | (17.3020 mm, 1.5159 mm) | | Point 20: | (16.2400 mm, 0.8651 mm) | | Point 21: | (15.0893 mm, 0.3885 mm) | | Point 22: | (12.6365 mm, 0.0000 mm) | | Point 23: | (0.0000 mm, 0.0000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 2.7500 inches (69.8500 mm) |
