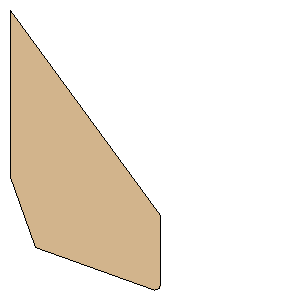

Estes Astron Beta Freeform Fin S Freeform Fin Set| Manufacturer: | Estes | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 41.2750 mm) | | Point 2: | (6.3500 mm, 58.7375 mm) | | Point 3: | (35.1824 mm, 69.0876 mm) | | Point 4: | (35.4766 mm, 69.1624 mm) | | Point 5: | (35.7798 mm, 69.1798 mm) | | Point 6: | (36.0806 mm, 69.1391 mm) | | Point 7: | (36.3683 mm, 69.0420 mm) | | Point 8: | (36.6322 mm, 68.8918 mm) | | Point 9: | (36.8627 mm, 68.6942 mm) | | Point 10: | (37.0513 mm, 68.4563 mm) | | Point 11: | (37.1912 mm, 68.1868 mm) | | Point 12: | (37.2772 mm, 67.8957 mm) | | Point 13: | (37.3063 mm, 67.5934 mm) | | Point 14: | (37.3063 mm, 50.8000 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 1.6250 inches (41.2750 mm) | | Height: | 2.7236 inches (69.1798 mm) |
