Rocketry Parts Database >> Fins >>

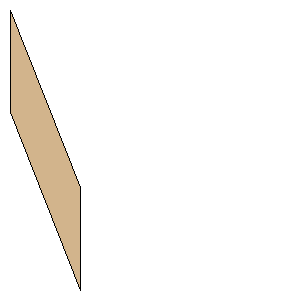

Estes Astron Scout Trapezoid Fin Trapezoid Fin Set

Manufacturer:Estes
Part Number:Scout Fin Set 3/16 - ver. 2
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:1.3583 inches (34.5008 mm)
Tip Chord:1.3583 inches (34.5008 mm)
Sweep Distance:2.3512 inches (59.7205 mm)
SemiSpan:0.9291 inches (23.5991 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(23.5991 mm, 59.7205 mm)
Point 3:(23.5991 mm, 94.2213 mm)
Point 4:(0.0000 mm, 34.5008 mm)
Width:0.9291 inches (23.5991 mm)
Height:3.7095 inches (94.2213 mm)
