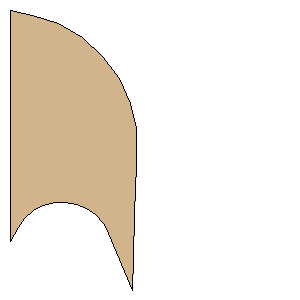

Flash Rogers Freeform Fin Set Freeform Fin Set| Manufacturer: | Estes | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 86.8961 mm) | | Point 2: | (3.0823 mm, 81.6224 mm) | | Point 3: | (5.5942 mm, 78.2457 mm) | | Point 4: | (8.7863 mm, 75.5029 mm) | | Point 5: | (12.5028 mm, 73.5280 mm) | | Point 6: | (16.5622 mm, 72.4173 mm) | | Point 7: | (20.7663 mm, 72.2251 mm) | | Point 8: | (24.9102 mm, 72.9606 mm) | | Point 9: | (28.7913 mm, 74.5881 mm) | | Point 10: | (32.2205 mm, 77.0280 mm) | | Point 11: | (35.0302 mm, 80.1613 mm) | | Point 12: | (37.0833 mm, 83.8351 mm) | | Point 13: | (46.1139 mm, 105.2580 mm) | | Point 14: | (46.4616 mm, 93.4350 mm) | | Point 15: | (46.8093 mm, 76.9175 mm) | | Point 16: | (47.3309 mm, 67.0071 mm) | | Point 17: | (47.5048 mm, 58.8353 mm) | | Point 18: | (47.5511 mm, 51.1169 mm) | | Point 19: | (47.6342 mm, 44.6362 mm) | | Point 20: | (45.2962 mm, 35.0604 mm) | | Point 21: | (40.9827 mm, 25.6703 mm) | | Point 22: | (34.8584 mm, 17.3474 mm) | | Point 23: | (27.1765 mm, 10.4360 mm) | | Point 24: | (18.2551 mm, 5.2221 mm) | | Point 25: | (8.4630 mm, 1.9213 mm) | | Point 26: | (0.0000 mm, 0.0000 mm) | | Width: | 3.4211 inches (86.8961 mm) | | Height: | 4.1440 inches (105.2580 mm) |
