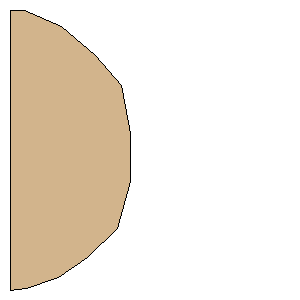

Elipse Freeform Fin Set Freeform Fin Set

Manufacturer:Estes
Part Number:
Style:Freeform Fin Set
Material:G10 (PML 0.093)

Download as PDF

Point 1:(0.0000 mm, 177.8000 mm)
Point 2:(10.6680 mm, 177.0380 mm)
Point 3:(30.9880 mm, 169.9260 mm)
Point 4:(49.0220 mm, 157.2260 mm)
Point 5:(68.3260 mm, 138.5860 mm)
Point 6:(76.4540 mm, 108.5440 mm)
Point 7:(76.7080 mm, 77.9780 mm)
Point 8:(70.8660 mm, 48.0060 mm)
Point 9:(54.1020 mm, 28.9560 mm)
Point 10:(32.7660 mm, 10.4140 mm)
Point 11:(9.1440 mm, -0.2540 mm)
Point 12:(0.0000 mm, 0.0000 mm)
Width:7.0000 inches (177.8000 mm)
Height:7.0100 inches (178.0540 mm)
