Estes - Prowler Launch Set Trape Trapezoid Fin Set| Manufacturer: | Estes | | Part Number: | 072884 | | Style: | Trapezoid Fin Set | | Material: | Polystyrene PS |

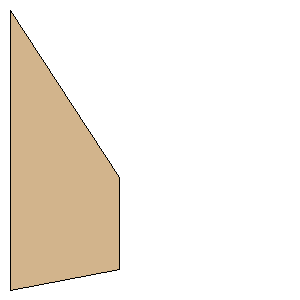

Download as PDF | Root Chord: | 5.1250 inches (130.1750 mm) | | Tip Chord: | 1.6875 inches (42.8625 mm) | | Sweep Distance: | 3.0625 inches (77.7875 mm) | | SemiSpan: | 2.0000 inches (50.8000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (50.8000 mm, 77.7875 mm) | | Point 3: | (50.8000 mm, 120.6500 mm) | | Point 4: | (0.0000 mm, 130.1750 mm) | | Width: | 2.0000 inches (50.8000 mm) | | Height: | 5.1250 inches (130.1750 mm) |
