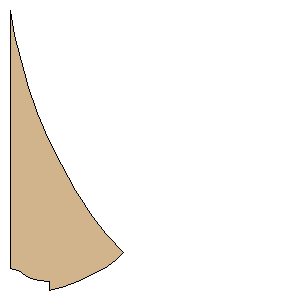

Red Rhino-V2.rkt Freeform Fin Se Freeform Fin Set| Manufacturer: | | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Fiberglass |
Download as PDF | Point 1: | (0.0000 mm, 127.0000 mm) | | Point 2: | (4.3744 mm, 128.2418 mm) | | Point 3: | (9.3133 mm, 131.6284 mm) | | Point 4: | (11.8533 mm, 132.3340 mm) | | Point 5: | (14.3933 mm, 133.0396 mm) | | Point 6: | (19.4056 mm, 133.7310 mm) | | Point 7: | (19.4056 mm, 137.6680 mm) | | Point 8: | (26.6700 mm, 135.7207 mm) | | Point 9: | (33.0200 mm, 133.6040 mm) | | Point 10: | (39.6522 mm, 130.7818 mm) | | Point 11: | (46.6852 mm, 127.0000 mm) | | Point 12: | (51.9289 mm, 123.1618 mm) | | Point 13: | (55.8800 mm, 119.1260 mm) | | Point 14: | (47.2722 mm, 110.3207 mm) | | Point 15: | (40.6400 mm, 101.6000 mm) | | Point 16: | (32.3144 mm, 88.7307 mm) | | Point 17: | (25.4000 mm, 76.2000 mm) | | Point 18: | (19.0500 mm, 63.8598 mm) | | Point 19: | (13.2842 mm, 50.8000 mm) | | Point 20: | (8.8900 mm, 37.9307 mm) | | Point 21: | (5.5033 mm, 25.3718 mm) | | Point 22: | (2.3989 mm, 12.6718 mm) | | Point 23: | (0.0000 mm, 0.0000 mm) | | Width: | 5.0000 inches (127.0000 mm) | | Height: | 5.4200 inches (137.6680 mm) |
