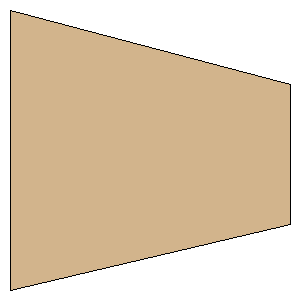

FSI Nova MRK-III Trapezoid Fin S Trapezoid Fin Set| Manufacturer: | FSI | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/16 Aircraft Plywood |
Download as PDF | Root Chord: | 2.3400 inches (59.4360 mm) | | Tip Chord: | 1.1700 inches (29.7180 mm) | | Sweep Distance: | 0.6250 inches (15.8750 mm) | | SemiSpan: | 2.3400 inches (59.4360 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (59.4360 mm, 15.8750 mm) | | Point 3: | (59.4360 mm, 45.5930 mm) | | Point 4: | (0.0000 mm, 59.4360 mm) | | Width: | 2.3400 inches (59.4360 mm) | | Height: | 2.3400 inches (59.4360 mm) |
