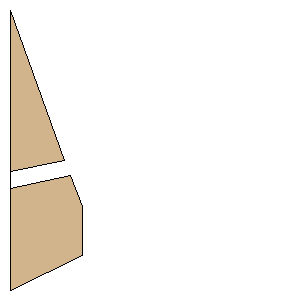

Broken Arrow.rkt Freeform Fin Se Freeform Fin Set| Manufacturer: | | | Part Number: | | | Style: | Freeform Fin Set | | Material: | G10 Fiberglass |
Download as PDF | Point 1: | (0.0000 mm, 219.0750 mm) | | Point 2: | (56.4642 mm, 192.0875 mm) | | Point 3: | (56.4642 mm, 153.9240 mm) | | Point 4: | (47.2694 mm, 129.5400 mm) | | Point 5: | (0.0000 mm, 139.2767 mm) | | Point 6: | (0.0000 mm, 126.1872 mm) | | Point 7: | (42.3418 mm, 117.4750 mm) | | Point 8: | (0.0000 mm, 0.0000 mm) | | Width: | 8.6250 inches (219.0750 mm) | | Height: | 8.6250 inches (219.0750 mm) |
