Eggsterdam Freeform Fin Set Freeform Fin Set

Manufacturer:Gardei
Part Number:GR-ADS
Style:Freeform Fin Set
Material:Balsa

Download as PDF

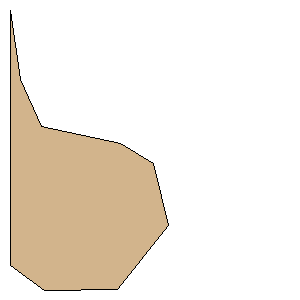

Point 1:(0.0000 mm, 107.9607 mm)
Point 2:(14.4364 mm, 118.1190 mm)
Point 3:(45.2192 mm, 117.9651 mm)
Point 4:(66.7672 mm, 90.8762 mm)
Point 5:(60.4252 mm, 64.5881 mm)
Point 6:(46.4505 mm, 56.3994 mm)
Point 7:(13.3590 mm, 49.0116 mm)
Point 8:(4.5721 mm, 29.3186 mm)
Point 9:(0.0000 mm, 0.0000 mm)
Width:4.2504 inches (107.9607 mm)
Height:4.6504 inches (118.1190 mm)
