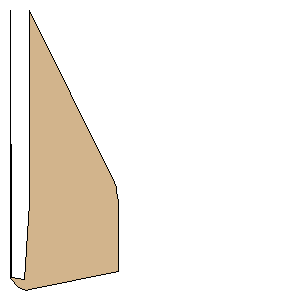

Estes Astron Trident Freeform Fi Freeform Fin Set| Manufacturer: | HomeMade | | Part Number: | K-33Fin | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 133.3500 mm) | | Point 2: | (3.9370 mm, 137.2870 mm) | | Point 3: | (4.9022 mm, 138.0744 mm) | | Point 4: | (6.0198 mm, 138.6586 mm) | | Point 5: | (7.2136 mm, 139.0396 mm) | | Point 6: | (8.4328 mm, 139.1412 mm) | | Point 7: | (9.6774 mm, 139.0396 mm) | | Point 8: | (53.9750 mm, 130.1750 mm) | | Point 9: | (53.9750 mm, 95.2500 mm) | | Point 10: | (53.5432 mm, 92.8370 mm) | | Point 11: | (53.1114 mm, 90.8558 mm) | | Point 12: | (53.1114 mm, 90.8558 mm) | | Point 13: | (53.1114 mm, 90.8558 mm) | | Point 14: | (53.0860 mm, 90.8558 mm) | | Point 15: | (53.0860 mm, 90.8304 mm) | | Point 16: | (53.0860 mm, 90.8304 mm) | | Point 17: | (52.8828 mm, 88.4174 mm) | | Point 18: | (51.9938 mm, 85.5472 mm) | | Point 19: | (50.6730 mm, 82.8802 mm) | | Point 20: | (9.5250 mm, 0.0000 mm) | | Point 21: | (9.5250 mm, 96.1644 mm) | | Point 22: | (7.3406 mm, 134.1628 mm) | | Point 23: | (0.5080 mm, 132.8420 mm) | | Point 24: | (0.0000 mm, 0.0000 mm) | | Width: | 5.2500 inches (133.3500 mm) | | Height: | 5.4780 inches (139.1412 mm) |
