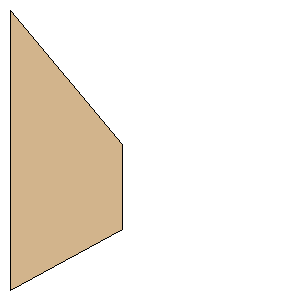

Dart Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | LFR1 Small Fins | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Fir (Douglas) |
Download as PDF | Root Chord: | 6.2000 inches (157.4800 mm) | | Tip Chord: | 1.8750 inches (47.6250 mm) | | Sweep Distance: | 2.9794 inches (75.6768 mm) | | SemiSpan: | 2.5000 inches (63.5000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (63.5000 mm, 75.6768 mm) | | Point 3: | (63.5000 mm, 123.3018 mm) | | Point 4: | (0.0000 mm, 157.4800 mm) | | Width: | 2.5000 inches (63.5000 mm) | | Height: | 6.2000 inches (157.4800 mm) |
