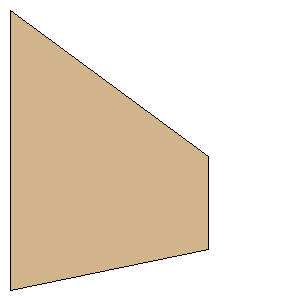

LOC Viper III Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | LOC/Precision | | Part Number: | viperIII | | Style: | Trapezoid Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Root Chord: | 5.3000 inches (134.6200 mm) | | Tip Chord: | 1.7600 inches (44.7040 mm) | | Sweep Distance: | 2.7640 inches (70.2056 mm) | | SemiSpan: | 3.7500 inches (95.2500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (95.2500 mm, 70.2056 mm) | | Point 3: | (95.2500 mm, 114.9096 mm) | | Point 4: | (0.0000 mm, 134.6200 mm) | | Width: | 3.7500 inches (95.2500 mm) | | Height: | 5.3000 inches (134.6200 mm) |
