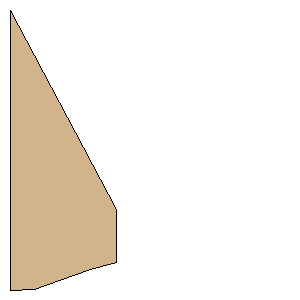

LOC HyperLOC 835 Freeform Fin Se Freeform Fin Set| Manufacturer: | LOC/Precision | | Part Number: | FS-87 | | Style: | Freeform Fin Set | | Material: | 3/16 Aircraft Plywood |
Download as PDF | Point 1: | (0.0000 mm, 269.2740 mm) | | Point 2: | (23.3181 mm, 268.7550 mm) | | Point 3: | (77.8145 mm, 249.6140 mm) | | Point 4: | (102.1390 mm, 242.4600 mm) | | Point 5: | (102.1390 mm, 234.5900 mm) | | Point 6: | (102.1390 mm, 213.1270 mm) | | Point 7: | (102.2060 mm, 191.6640 mm) | | Point 8: | (0.0000 mm, 0.0000 mm) | | Width: | 10.6013 inches (269.2740 mm) | | Height: | 10.6013 inches (269.2740 mm) |
