Rocketry Parts Database >> Fins >>

PK-76 IROC Freeform Fin Set Freeform Fin Set

Manufacturer:LOC/Precision
Part Number:FS-57
Style:Freeform Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

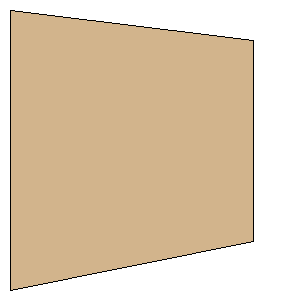

Point 1:(0.0000 mm, 146.0500 mm)
Point 2:(127.0000 mm, 120.6500 mm)
Point 3:(127.0000 mm, 15.8750 mm)
Point 4:(0.0000 mm, 0.0000 mm)
Width:5.7500 inches (146.0500 mm)
Height:5.7500 inches (146.0500 mm)
