LOC Aura modified Freeform Fin S Freeform Fin Set| Manufacturer: | LOC/Precision | | Part Number: | FS-1 | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (LOC) |

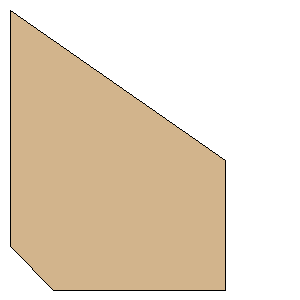

Download as PDF | Point 1: | (0.0000 mm, 69.8500 mm) | | Point 2: | (12.7000 mm, 82.5500 mm) | | Point 3: | (63.5000 mm, 82.5500 mm) | | Point 4: | (63.5000 mm, 44.4500 mm) | | Point 5: | (0.0000 mm, 0.0000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 3.2500 inches (82.5500 mm) |
