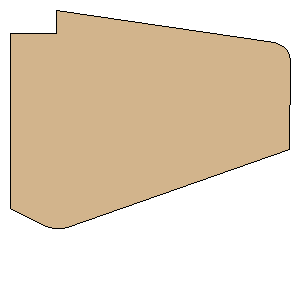

Estes - Air Commander Freeform F Freeform Fin Set| Manufacturer: | LOC/Precision | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 47.7520 mm) | | Point 2: | (9.7969 mm, 52.5661 mm) | | Point 3: | (10.9195 mm, 53.0111 mm) | | Point 4: | (12.0983 mm, 53.2732 mm) | | Point 5: | (13.3036 mm, 53.3457 mm) | | Point 6: | (14.5053 mm, 53.2270 mm) | | Point 7: | (15.6732 mm, 52.9199 mm) | | Point 8: | (76.2000 mm, 31.7500 mm) | | Point 9: | (76.3431 mm, 7.5035 mm) | | Point 10: | (76.1454 mm, 6.0697 mm) | | Point 11: | (75.5514 mm, 4.7499 mm) | | Point 12: | (74.6092 mm, 3.6511 mm) | | Point 13: | (72.0087 mm, 2.4485 mm) | | Point 14: | (12.7000 mm, -6.3500 mm) | | Point 15: | (12.7000 mm, 0.0000 mm) | | Point 16: | (0.0000 mm, 0.0000 mm) | | Width: | 3.0056 inches (76.3431 mm) | | Height: | 2.3502 inches (59.6957 mm) |
