Centuri - SST Shuttle-1 Freeform Freeform Fin Set| Manufacturer: | LOC/Precision | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |

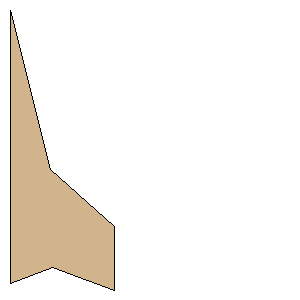

Download as PDF | Point 1: | (0.0000 mm, 212.3910 mm) | | Point 2: | (33.2785 mm, 200.3040 mm) | | Point 3: | (80.9625 mm, 217.6780 mm) | | Point 4: | (80.9625 mm, 168.1480 mm) | | Point 5: | (31.7500 mm, 123.9520 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 8.3619 inches (212.3910 mm) | | Height: | 8.5700 inches (217.6780 mm) |
