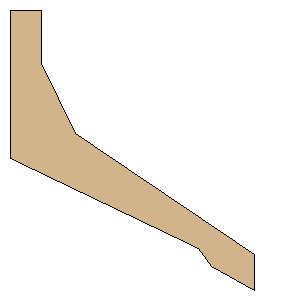

Time Cop 2 Freeform Fin Set Freeform Fin Set

Manufacturer:LOC/Precision
Part Number:
Style:Freeform Fin Set
Material:G10 fiberglass

Download as PDF

Point 1:(0.0000 mm, 123.2000 mm)
Point 2:(157.4940 mm, 199.0630 mm)
Point 3:(167.9070 mm, 213.9390 mm)
Point 4:(203.6070 mm, 233.2760 mm)
Point 5:(203.6070 mm, 203.5260 mm)
Point 6:(54.8556 mm, 102.3750 mm)
Point 7:(26.5928 mm, 44.3619 mm)
Point 8:(26.5928 mm, -0.2635 mm)
Point 9:(0.0000 mm, 0.0000 mm)
Width:8.0160 inches (203.6070 mm)
Height:9.1945 inches (233.5395 mm)
