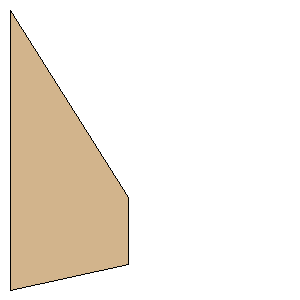

Madcow Rocketry Avalanche Trapez Trapezoid Fin Set| Manufacturer: | Madcow Rocketry | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 (PML 0.125) |
Download as PDF | Root Chord: | 9.8940 inches (251.3076 mm) | | Tip Chord: | 2.3540 inches (59.7916 mm) | | Sweep Distance: | 6.6360 inches (168.5544 mm) | | SemiSpan: | 4.1740 inches (106.0196 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (106.0196 mm, 168.5544 mm) | | Point 3: | (106.0196 mm, 228.3460 mm) | | Point 4: | (0.0000 mm, 251.3076 mm) | | Width: | 4.1740 inches (106.0196 mm) | | Height: | 9.8940 inches (251.3076 mm) |
