Bucky Jones - Space Cadet Freefo Freeform Fin Set

Manufacturer:Pem Tech
Part Number:
Style:Freeform Fin Set
Material:1/8 Aircraft Plywood

Download as PDF

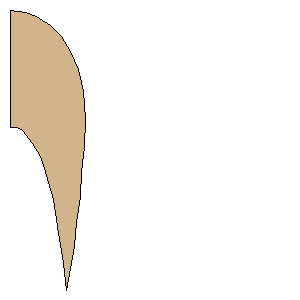

Point 1:(0.0000 mm, 132.3960 mm)
Point 2:(8.1739 mm, 132.4010 mm)
Point 3:(14.0716 mm, 136.1550 mm)
Point 4:(25.8670 mm, 150.6310 mm)
Point 5:(34.4455 mm, 166.1790 mm)
Point 6:(39.2710 mm, 179.5830 mm)
Point 7:(44.0964 mm, 195.6680 mm)
Point 8:(48.9218 mm, 214.4330 mm)
Point 9:(53.7472 mm, 244.9940 mm)
Point 10:(60.1811 mm, 286.8150 mm)
Point 11:(63.3980 mm, 316.8390 mm)
Point 12:(72.7783 mm, 267.5290 mm)
Point 13:(75.7296 mm, 240.7050 mm)
Point 14:(79.4827 mm, 211.2160 mm)
Point 15:(81.0912 mm, 183.3360 mm)
Point 16:(83.7720 mm, 154.3840 mm)
Point 17:(84.9758 mm, 123.5380 mm)
Point 18:(82.7145 mm, 91.6571 mm)
Point 19:(77.7464 mm, 66.8165 mm)
Point 20:(68.8038 mm, 46.9440 mm)
Point 21:(57.8739 mm, 30.0524 mm)
Point 22:(45.4140 mm, 17.9643 mm)
Point 23:(30.0524 mm, 7.1991 mm)
Point 24:(17.6121 mm, 2.9941 mm)
Point 25:(0.0000 mm, 0.0000 mm)
Width:5.2124 inches (132.3960 mm)
Height:12.4740 inches (316.8390 mm)
