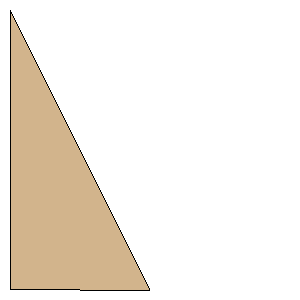

Performance Rocketry Half Scale Trapezoid Fin Set| Manufacturer: | Performance | | Part Number: | AMRAAM | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 6.0000 inches (152.4000 mm) | | Tip Chord: | 0.0010 inches (0.0254 mm) | | Sweep Distance: | 6.0000 inches (152.4000 mm) | | SemiSpan: | 3.0000 inches (76.2000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (76.2000 mm, 152.4000 mm) | | Point 3: | (76.2000 mm, 152.4254 mm) | | Point 4: | (0.0000 mm, 152.4000 mm) | | Width: | 3.0000 inches (76.2000 mm) | | Height: | 6.0010 inches (152.4254 mm) |
