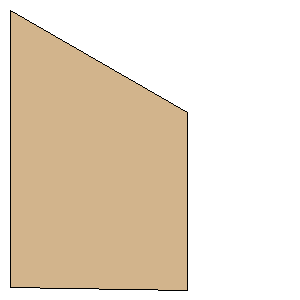

arcas.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Plywood (birch) |
Download as PDF | Root Chord: | 4.0000 inches (101.6000 mm) | | Tip Chord: | 2.5600 inches (65.0240 mm) | | Sweep Distance: | 1.4722 inches (37.3939 mm) | | SemiSpan: | 2.5500 inches (64.7700 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (64.7700 mm, 37.3939 mm) | | Point 3: | (64.7700 mm, 102.4179 mm) | | Point 4: | (0.0000 mm, 101.6000 mm) | | Width: | 2.5500 inches (64.7700 mm) | | Height: | 4.0322 inches (102.4179 mm) |
