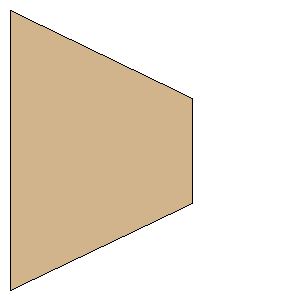

estes_crossfire_isx.rkt Trapezoi Trapezoid Fin Set| Manufacturer: | PML | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 3.0000 inches (76.2000 mm) | | Tip Chord: | 1.1250 inches (28.5750 mm) | | Sweep Distance: | 0.9468 inches (24.0487 mm) | | SemiSpan: | 1.9520 inches (49.5808 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (49.5808 mm, 24.0487 mm) | | Point 3: | (49.5808 mm, 52.6237 mm) | | Point 4: | (0.0000 mm, 76.2000 mm) | | Width: | 1.9520 inches (49.5808 mm) | | Height: | 3.0000 inches (76.2000 mm) |
