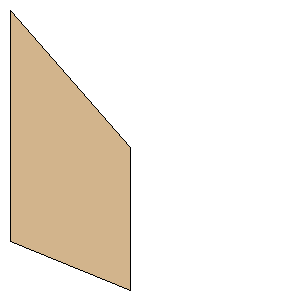

Intruder_38mmMAC-8.rkt Trapezoid Trapezoid Fin Set| Manufacturer: | PML | | Part Number: | LLnExp Averaged | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 6.9380 inches (176.2252 mm) | | Tip Chord: | 4.2750 inches (108.5850 mm) | | Sweep Distance: | 4.1248 inches (104.7699 mm) | | SemiSpan: | 3.6250 inches (92.0750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (92.0750 mm, 104.7699 mm) | | Point 3: | (92.0750 mm, 213.3549 mm) | | Point 4: | (0.0000 mm, 176.2252 mm) | | Width: | 3.6250 inches (92.0750 mm) | | Height: | 8.3998 inches (213.3549 mm) |
