Rocketry Parts Database >> Fins >>

DRegionTomahawk_38mmRedlineEllis Trapezoid Fin Set

Manufacturer:PML
Part Number:End2
Style:Trapezoid Fin Set
Material:G10 phenolic

Download as PDF

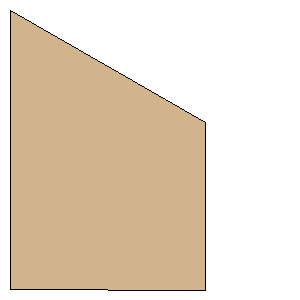

Root Chord:5.0000 inches (127.0000 mm)
Tip Chord:3.0000 inches (76.2000 mm)
Sweep Distance:2.0004 inches (50.8102 mm)
SemiSpan:3.5000 inches (88.9000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(88.9000 mm, 50.8102 mm)
Point 3:(88.9000 mm, 127.0102 mm)
Point 4:(0.0000 mm, 127.0000 mm)
Width:3.5000 inches (88.9000 mm)
Height:5.0004 inches (127.0102 mm)
