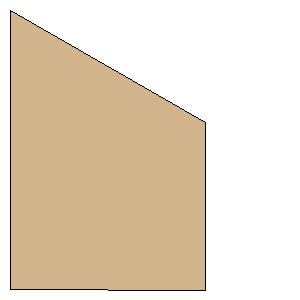

RockSim - Endeavour (dual deploy Trapezoid Fin Set| Manufacturer: | PML | | Part Number: | End2 | | Style: | Trapezoid Fin Set | | Material: | G10 phenolic |
Download as PDF | Root Chord: | 5.0000 inches (127.0000 mm) | | Tip Chord: | 3.0000 inches (76.2000 mm) | | Sweep Distance: | 2.0004 inches (50.8102 mm) | | SemiSpan: | 3.5000 inches (88.9000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (88.9000 mm, 50.8102 mm) | | Point 3: | (88.9000 mm, 127.0102 mm) | | Point 4: | (0.0000 mm, 127.0000 mm) | | Width: | 3.5000 inches (88.9000 mm) | | Height: | 5.0004 inches (127.0102 mm) |
