1-2PatriotRedlineEllisMAC-8.rkt Trapezoid Fin Set

Manufacturer:PML
Part Number:1-4Pat1
Style:Trapezoid Fin Set
Material:G10 phenolic

Download as PDF

Root Chord:6.7500 inches (171.4500 mm)
Tip Chord:2.1250 inches (53.9750 mm)
Sweep Distance:4.5008 inches (114.3203 mm)
SemiSpan:3.5000 inches (88.9000 mm)

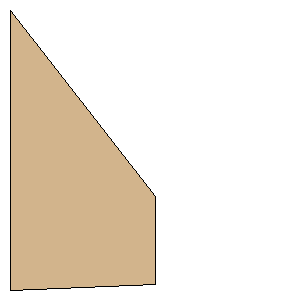

Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(88.9000 mm, 114.3203 mm)
Point 3:(88.9000 mm, 168.2953 mm)
Point 4:(0.0000 mm, 171.4500 mm)
Width:3.5000 inches (88.9000 mm)
Height:6.7500 inches (171.4500 mm)
