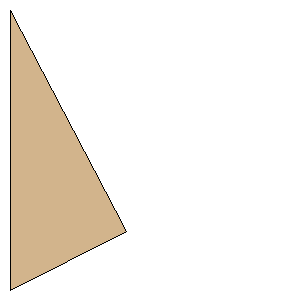

Orion 38mm.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | PML | | Part Number: | Stra1 | | Style: | Trapezoid Fin Set | | Material: | G10 phenolic |
Download as PDF | Root Chord: | 6.0000 inches (152.4000 mm) | | Tip Chord: | 0.0010 inches (0.0254 mm) | | Sweep Distance: | 4.7497 inches (120.6424 mm) | | SemiSpan: | 2.5000 inches (63.5000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (63.5000 mm, 120.6424 mm) | | Point 3: | (63.5000 mm, 120.6678 mm) | | Point 4: | (0.0000 mm, 152.4000 mm) | | Width: | 2.5000 inches (63.5000 mm) | | Height: | 6.0000 inches (152.4000 mm) |
