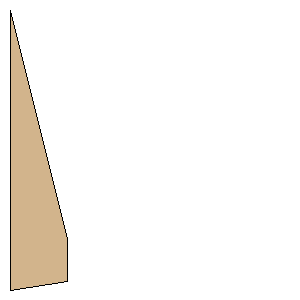

PublicEnemy-Gladiator-3.rkt Trap Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/16 Aircraft Plywood |
Download as PDF | Root Chord: | 20.7500 inches (527.0500 mm) | | Tip Chord: | 3.1000 inches (78.7400 mm) | | Sweep Distance: | 17.0000 inches (431.8000 mm) | | SemiSpan: | 4.2500 inches (107.9500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (107.9500 mm, 431.8000 mm) | | Point 3: | (107.9500 mm, 510.5400 mm) | | Point 4: | (0.0000 mm, 527.0500 mm) | | Width: | 4.2500 inches (107.9500 mm) | | Height: | 20.7500 inches (527.0500 mm) |
