Estes - Orbital Transport Freefo Freeform Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-MATR-UPR | | Style: | Freeform Fin Set | | Material: | Balsa |

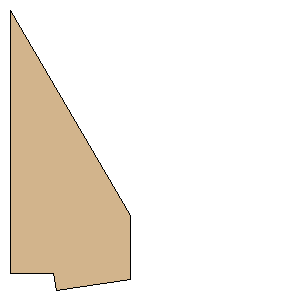

Download as PDF | Point 1: | (0.0000 mm, 152.4000 mm) | | Point 2: | (25.0698 mm, 152.4000 mm) | | Point 3: | (26.6700 mm, 161.9250 mm) | | Point 4: | (69.8500 mm, 155.5750 mm) | | Point 5: | (69.8500 mm, 118.6180 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 6.0000 inches (152.4000 mm) | | Height: | 6.3750 inches (161.9250 mm) |
