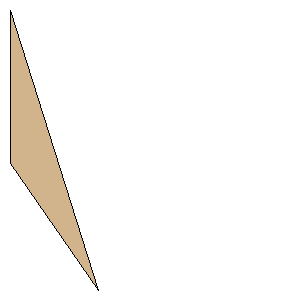

Sunward Areospace Ltd. Tri Force Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-B-01 | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.6000 inches (66.0400 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 4.7500 inches (120.6500 mm) | | SemiSpan: | 1.5000 inches (38.1000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (38.1000 mm, 120.6500 mm) | | Point 3: | (38.1000 mm, 120.6500 mm) | | Point 4: | (0.0000 mm, 66.0400 mm) | | Width: | 1.5000 inches (38.1000 mm) | | Height: | 4.7500 inches (120.6500 mm) |
