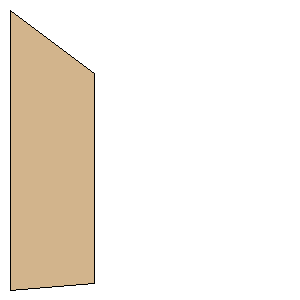

The Launch Pad Hellfire AGM-114A Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 5.0000 inches (127.0000 mm) | | Tip Chord: | 3.7500 inches (95.2500 mm) | | Sweep Distance: | 1.1348 inches (28.8239 mm) | | SemiSpan: | 1.5000 inches (38.1000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (38.1000 mm, 28.8239 mm) | | Point 3: | (38.1000 mm, 124.0739 mm) | | Point 4: | (0.0000 mm, 127.0000 mm) | | Width: | 1.5000 inches (38.1000 mm) | | Height: | 5.0000 inches (127.0000 mm) |
