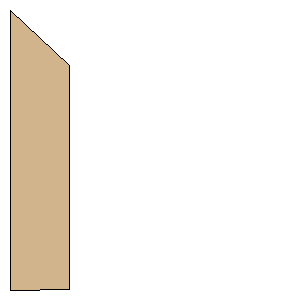

Estes - Orbital Transport Trapez Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-A-01 | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 0.7500 inches (19.0500 mm) | | Tip Chord: | 0.6000 inches (15.2400 mm) | | Sweep Distance: | 0.1491 inches (3.7871 mm) | | SemiSpan: | 0.1600 inches (4.0640 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (4.0640 mm, 3.7871 mm) | | Point 3: | (4.0640 mm, 19.0271 mm) | | Point 4: | (0.0000 mm, 19.0500 mm) | | Width: | 0.1600 inches (4.0640 mm) | | Height: | 0.7500 inches (19.0500 mm) |
