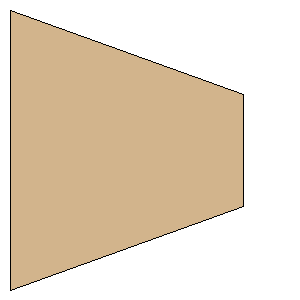

Hebe.rkt Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Public Missiles
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:1.5000 inches (38.1000 mm)
Tip Chord:0.6000 inches (15.2400 mm)
Sweep Distance:0.4500 inches (11.4300 mm)
SemiSpan:1.2500 inches (31.7500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(31.7500 mm, 11.4300 mm)
Point 3:(31.7500 mm, 26.6700 mm)
Point 4:(0.0000 mm, 38.1000 mm)
Width:1.2500 inches (31.7500 mm)
Height:1.5000 inches (38.1000 mm)
