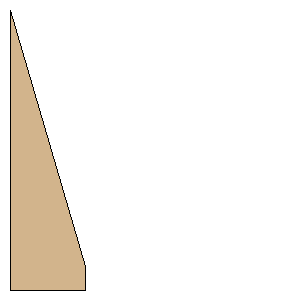

Delta X-15 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-A-01 | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 12.0000 inches (304.8000 mm) | | Tip Chord: | 1.0000 inches (25.4000 mm) | | Sweep Distance: | 11.0000 inches (279.4000 mm) | | SemiSpan: | 3.2500 inches (82.5500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (82.5500 mm, 279.4000 mm) | | Point 3: | (82.5500 mm, 304.8000 mm) | | Point 4: | (0.0000 mm, 304.8000 mm) | | Width: | 3.2500 inches (82.5500 mm) | | Height: | 12.0000 inches (304.8000 mm) |
