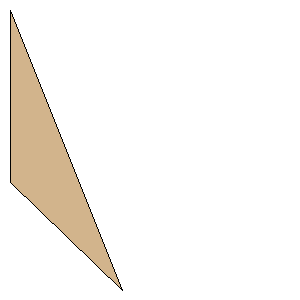

Sunward Areospace Ltd. Tri Force Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-B-01 | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.6200 inches (66.5480 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 4.2500 inches (107.9500 mm) | | SemiSpan: | 1.7000 inches (43.1800 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (43.1800 mm, 107.9500 mm) | | Point 3: | (43.1800 mm, 107.9500 mm) | | Point 4: | (0.0000 mm, 66.5480 mm) | | Width: | 1.7000 inches (43.1800 mm) | | Height: | 4.2500 inches (107.9500 mm) |
