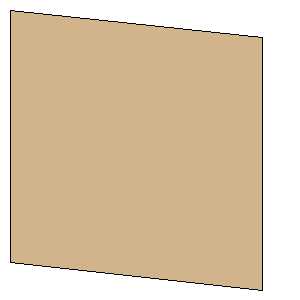

Semi-Centipede of Zeus Trapezoid Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 2.2600 inches (57.4040 mm) | | Tip Chord: | 2.2600 inches (57.4040 mm) | | Sweep Distance: | 0.2500 inches (6.3500 mm) | | SemiSpan: | 2.2600 inches (57.4040 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (57.4040 mm, 6.3500 mm) | | Point 3: | (57.4040 mm, 63.7540 mm) | | Point 4: | (0.0000 mm, 57.4040 mm) | | Width: | 2.2600 inches (57.4040 mm) | | Height: | 2.5100 inches (63.7540 mm) |
