Raytheon (General Dynamics) RIM- Freeform Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-B-03 & FIN-QLEAP-SUS | | Style: | Freeform Fin Set | | Material: | G10 fiberglass |

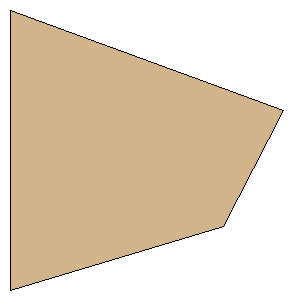

Download as PDF | Point 1: | (0.0000 mm, 88.9000 mm) | | Point 2: | (67.8492 mm, 68.8027 mm) | | Point 3: | (86.6837 mm, 31.8312 mm) | | Point 4: | (0.0000 mm, 0.0000 mm) | | Width: | 3.5000 inches (88.9000 mm) | | Height: | 3.5000 inches (88.9000 mm) |
