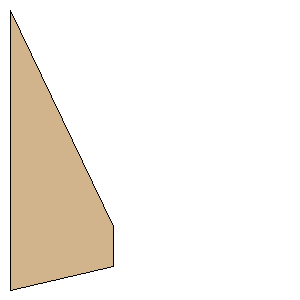

SGM Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-A-01 | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 7.0000 inches (177.8000 mm) | | Tip Chord: | 1.0000 inches (25.4000 mm) | | Sweep Distance: | 5.4088 inches (137.3835 mm) | | SemiSpan: | 2.5984 inches (65.9994 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (65.9994 mm, 137.3835 mm) | | Point 3: | (65.9994 mm, 162.7835 mm) | | Point 4: | (0.0000 mm, 177.8000 mm) | | Width: | 2.5984 inches (65.9994 mm) | | Height: | 7.0000 inches (177.8000 mm) |
