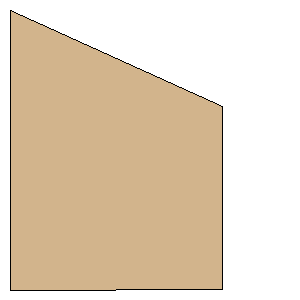

What If O-Power Trapezoid Fin Se Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-UEND-LWR | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 7.2500 inches (184.1500 mm) | | Tip Chord: | 4.7500 inches (120.6500 mm) | | Sweep Distance: | 2.4995 inches (63.4873 mm) | | SemiSpan: | 5.5000 inches (139.7000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (139.7000 mm, 63.4873 mm) | | Point 3: | (139.7000 mm, 184.1373 mm) | | Point 4: | (0.0000 mm, 184.1500 mm) | | Width: | 5.5000 inches (139.7000 mm) | | Height: | 7.2500 inches (184.1500 mm) |
