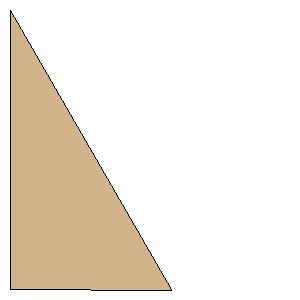

LOC/Precision LOC 4-29SS Trapezo Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-PHOB-xx | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 6.5000 inches (165.1000 mm) | | Tip Chord: | 0.0010 inches (0.0254 mm) | | Sweep Distance: | 6.5000 inches (165.1000 mm) | | SemiSpan: | 3.7500 inches (95.2500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (95.2500 mm, 165.1000 mm) | | Point 3: | (95.2500 mm, 165.1254 mm) | | Point 4: | (0.0000 mm, 165.1000 mm) | | Width: | 3.7500 inches (95.2500 mm) | | Height: | 6.5010 inches (165.1254 mm) |
