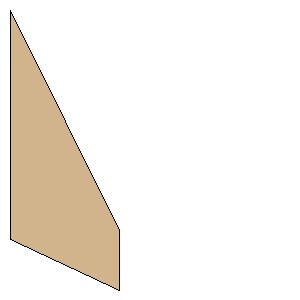

What If O-Power Trapezoid Fin Se Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-UEND-UPR | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 11.5000 inches (292.1000 mm) | | Tip Chord: | 3.0000 inches (76.2000 mm) | | Sweep Distance: | 11.0024 inches (279.4610 mm) | | SemiSpan: | 5.5000 inches (139.7000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (139.7000 mm, 279.4610 mm) | | Point 3: | (139.7000 mm, 355.6610 mm) | | Point 4: | (0.0000 mm, 292.1000 mm) | | Width: | 5.5000 inches (139.7000 mm) | | Height: | 14.0024 inches (355.6610 mm) |
