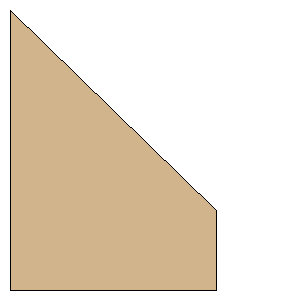

Fork.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-AM3-LWR | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 5.2500 inches (133.3500 mm) | | Tip Chord: | 1.5000 inches (38.1000 mm) | | Sweep Distance: | 3.7500 inches (95.2500 mm) | | SemiSpan: | 3.8800 inches (98.5520 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (98.5520 mm, 95.2500 mm) | | Point 3: | (98.5520 mm, 133.3500 mm) | | Point 4: | (0.0000 mm, 133.3500 mm) | | Width: | 3.8800 inches (98.5520 mm) | | Height: | 5.2500 inches (133.3500 mm) |
