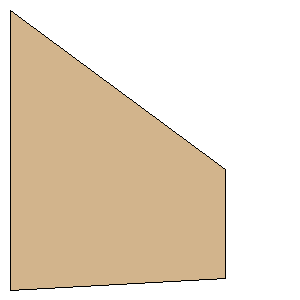

Bruiser EXP3_v7_5.rkt Trapezoid Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-2PAT | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 10.3125 inches (261.9375 mm) | | Tip Chord: | 4.0000 inches (101.6000 mm) | | Sweep Distance: | 5.8750 inches (149.2250 mm) | | SemiSpan: | 7.9375 inches (201.6125 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (201.6125 mm, 149.2250 mm) | | Point 3: | (201.6125 mm, 250.8250 mm) | | Point 4: | (0.0000 mm, 261.9375 mm) | | Width: | 7.9375 inches (201.6125 mm) | | Height: | 10.3125 inches (261.9375 mm) |
