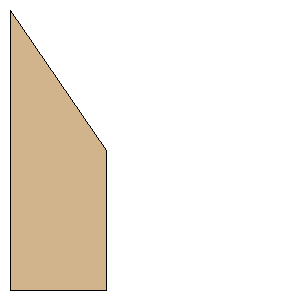

Rocksim file Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | "G10 (PML 0.062"")" |
Download as PDF | Root Chord: | 8.0000 inches (203.2000 mm) | | Tip Chord: | 4.0000 inches (101.6000 mm) | | Sweep Distance: | 4.0000 inches (101.6000 mm) | | SemiSpan: | 2.7500 inches (69.8500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (69.8500 mm, 101.6000 mm) | | Point 3: | (69.8500 mm, 203.2000 mm) | | Point 4: | (0.0000 mm, 203.2000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 8.0000 inches (203.2000 mm) |
