Public Missiles "G10 (PML 0.062"")" Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | "G10 (PML 0.062"")" |

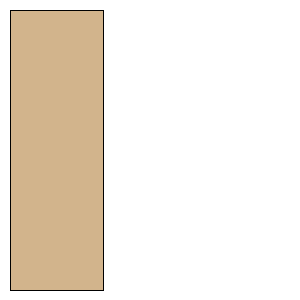

Download as PDF | Root Chord: | 3.0000 inches (76.2000 mm) | | Tip Chord: | 3.0000 inches (76.2000 mm) | | Sweep Distance: | 0.0000 inches (0.0000 mm) | | SemiSpan: | 1.0000 inches (25.4000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (25.4000 mm, 0.0000 mm) | | Point 3: | (25.4000 mm, 76.2000 mm) | | Point 4: | (0.0000 mm, 76.2000 mm) | | Width: | 1.0000 inches (25.4000 mm) | | Height: | 3.0000 inches (76.2000 mm) |
