Rocketry Parts Database >> Fins >>

Semroc-Geehod.rkt Freeform Fin S Freeform Fin Set

Manufacturer:Quest
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

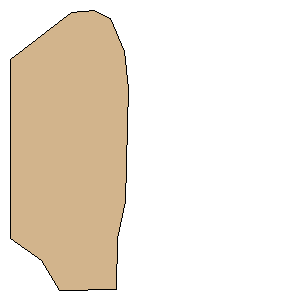

Point 1:(0.0000 mm, 58.9280 mm)
Point 2:(10.3124 mm, 66.2940 mm)
Point 3:(16.2560 mm, 75.9460 mm)
Point 4:(35.0520 mm, 75.6920 mm)
Point 5:(35.3060 mm, 58.9280 mm)
Point 6:(38.1000 mm, 46.7360 mm)
Point 7:(39.1160 mm, 9.5250 mm)
Point 8:(37.5920 mm, -2.7940 mm)
Point 9:(33.1978 mm, -13.5636 mm)
Point 10:(27.8638 mm, -16.3322 mm)
Point 11:(20.3708 mm, -15.5194 mm)
Point 12:(0.0000 mm, 0.0000 mm)
Width:2.3200 inches (58.9280 mm)
Height:3.6330 inches (92.2782 mm)
