Rocketry Parts Database >> Fins >>

Quest Balsa Freeform Fin Set

Manufacturer:Quest
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

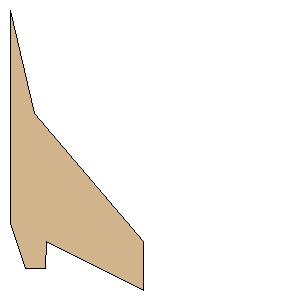

Point 1:(0.0000 mm, 111.1250 mm)
Point 2:(7.8740 mm, 134.8740 mm)
Point 3:(18.2880 mm, 134.8740 mm)
Point 4:(19.0500 mm, 120.6500 mm)
Point 5:(69.8500 mm, 146.0500 mm)
Point 6:(69.8500 mm, 120.6500 mm)
Point 7:(12.7000 mm, 53.9750 mm)
Point 8:(0.0000 mm, 0.0000 mm)
Width:4.3750 inches (111.1250 mm)
Height:5.7500 inches (146.0500 mm)
