Rocketry Parts Database >> Fins >>

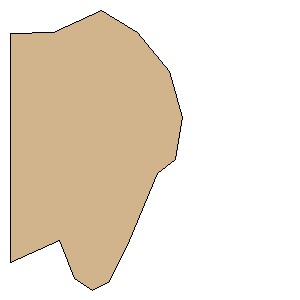

Semroc-Ruskie.rkt Freeform Fin S Freeform Fin Set

Manufacturer:Quest
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 60.5017 mm)
Point 2:(13.0947 mm, 54.6403 mm)
Point 3:(16.9272 mm, 64.7851 mm)
Point 4:(21.6614 mm, 67.7158 mm)
Point 5:(26.1702 mm, 65.4614 mm)
Point 6:(31.5808 mm, 54.6403 mm)
Point 7:(39.0203 mm, 37.0559 mm)
Point 8:(43.5291 mm, 33.2234 mm)
Point 9:(45.5581 mm, 22.1769 mm)
Point 10:(41.9510 mm, 10.0031 mm)
Point 11:(33.6097 mm, -0.1417 mm)
Point 12:(24.2397 mm, -6.1311 mm)
Point 13:(11.3520 mm, -0.0739 mm)
Point 14:(0.0000 mm, 0.0000 mm)
Width:2.3820 inches (60.5017 mm)
Height:2.9074 inches (73.8469 mm)
